Prefect Kubernetes Infrastructure

IAM User

The IAM user is important because EKS utilizes the user as the cluster admin. This means anyone signed in (even if they have admin privileges over the AWS account) will not be able to see the contents of the cluster unless they are authenticated with the cluster admin IAM user.

User Creation

1. Navigate to IAM management console

2. Within the Access Management section click on users

3. Click Add Users in the upper right corner

4. Input k8_manager as the username then click next

5. For permissions if there is an admin user group add the user to that group, if not add the Admin permission to the user

6. Tag the user with propper tags

   1. Project : Prefect

   2. Created By : <creator>

   3. Resource Name : k8_manager

   4. Deployed Date : <date of deployment>

   5. AWS Resource Accessed : IAM User

Grant CLI Credentials

1. Click on the k8_manager user

2. Click on the Security Credentials tab

3. Click on the Create Access Key button in the Access Keys section to generate new access keys

4. Copy the Access Key and the Secret Key into a Keeper Record with the directory as the account name, name of the user as the record name, the Access Key as the username and the Secret Key as the password

5. Configure AWS CLI to utilize those new credentials.

EKS Cluster Creation With Dependencies

Required Resources

eksctl

eksctl is a command line tool that enables you to spin up EKS infrastructure easily. If you dont already have eksctl installed I would reccomend utilizing chocolatey to instlal it. I will leave links to install both chocolatey and eksctl.

chocolatey install

https://chocolatey.org/install

eksctl install using chocolatey

chocolatey install eksctl

kubectl

In order to control the k8 cluster you will need to have kubectl installed. kubectl allows you to interact with the k8 cluster within AWS

Installing kubectl

https://docs.aws.amazon.com/eks/latest/userguide/install-kubectl.html

EKS Stack Spinnup

This is rather simple. I was able to condense this command into one for easy stack spinnup to have all the necessary resources that will make the EKS cluster possible.

eksctl command

eksctl create cluster --name bc-prod-prefect-fargate-eks --region us-east-1 --fargate --version 1.26 --zones us-east-1a,us-east-1b --tags "Project=Prefect,Created By=Scott Condo,Deployed Date=5/9/2023, Resource Name=bc-prod-prefect-fargate-eks,AWS Service Accessed=CloudFormation Stack"

Command Breakdown

1. 1. --name

      1. This is the name of the cluster you are making. Name it something intentional

   2. --region

      1. This is the region you will be working in. For most instances it will be us-east-1

   3. --fargate

      1. This states that the compute that we will be utilizing is fargate

   4. --version

      1. This is the version of k8 cluster

   5. --zones

      1. this is the different AZ zones that will be utilized

   6. --tags

      1. this is the list of tags that are requried for aws standards

This command will most likely run from 5-10 minutes. Wait for it to complete in terminal or else the control plane may not configure correctly.

Prefect Integration Into Prefect

Once the k8 cluster is configured infrastructure wise, there are still several steps that must be completed in order to integrate Prefect onto the cluster.

Confirm the Context

Confirm the correct context is being utilized. You can do so by running this command below:

kubectl config current-context

If the output is something like: <IAM user>@<cluster name>.us-east-1.eksctl.io then the correct context is being utilized.

Finding Correct Context

If the output is not what was expected look and apply your context utilizing these commands.

Get All Contexts

kubectl config get-contexts

This will display all of the contexts that are present in your .kubeconfig file. Look for the context that is named: <IAM user>@<cluster name>.us-east-1.eksctl.io and copy the name

Switch to That Context

kubectl config use-context <copied name from above step>

The correct context is now set and it is time to execute the manifest file to deploy the Prefect Agent

kubeconfig File Contents Share

In order to access the k8 cluster from another physical machine, the contents of the kubeconfig file will be necessary.

Resources

https://github.com/Bear-Cognition/aws_resource_files/tree/main/EKS

Process

Once the contents are confirmed follow these steps

1. copy contents from local config file and add it to that repository link config file

   1. cluster info

   2. context info

   3. user info

2. remove certificate-authority-data token and put it in the keeper secret that contains the IAM user information for the EKS cluster

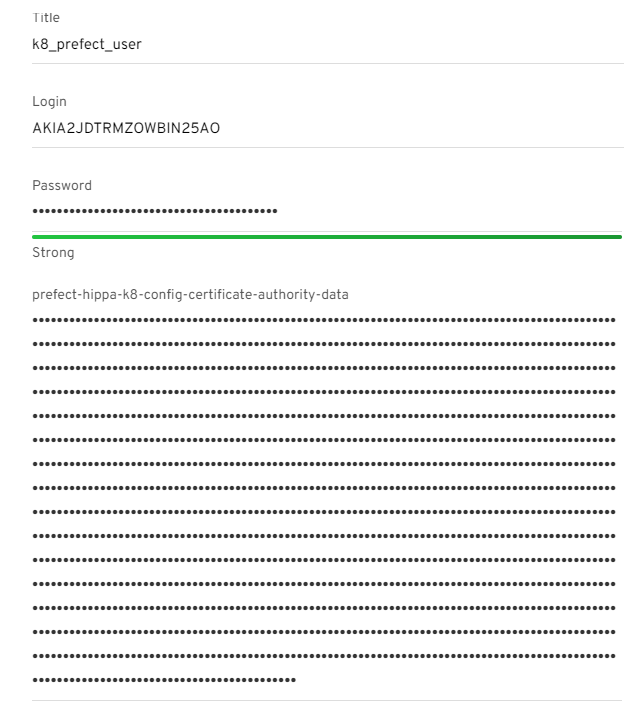

   1. After this step is applied the secret should look something like this

   2.

3. Save the config file in the GitHub repository then push the changes

Deploy the Prefect Agent

This step deploys a Prefect Agent onto the cluster which will control the flow runs that are queued to a specific Prefect Workpool.

K8 Resources

https://github.com/Bear-Cognition/aws_resource_files/tree/main/EKSThis subdirectory in the aws_resource_files GitHub directory contains an example manifest file. This manifest file is what is used to put an agent onto the k8 cluster to start accepting queued flow runs.

Modify and Apply Manifest File

Once the parameterized portions of the manifest file are filled out, the file is saved locally and you are in the files directory, this command will need to be executed:

kubectl apply -f <manifest file>

Confirm Manifest File was Applied

To confirm the manifest file has been applied run this command:

kubectl get pods

This command gets all of the pods. If there is a pod named prefect-agent-<unique values> and the STATUS of the do is Running, then the manifest file has applied correctly.

Configure Metrics Server

The metrics server is responsible for making the amount of resources being used transparent.

kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml

This command pulls the yaml files for the metrics server from the metrics server github repository. It also applies the manifest directly from the download. After running this command check the progress of creation utilizing this command:

kubectl get pods -n kube-system

Do not create the VPA resources until you see the pods for the metrics server running. If not the VPA resources wont deploy correctly.

Configure VPA

This is the Vertical Pod Autoscaler. It is responsible for looking at pods, seeing if their resources are getting bogged down by compute, and if they are to scale them up.Clone the VPA GitHub Repository

git clone https://github.com/kubernetes/autoscaler.git

Navigate to the Vertical Pod Autoscaler directory

cd autoscaler/vertical-pod-autoscaler/

Execute the vpa-up script. This script executes a series of manifest files creating necessary resources

./hack/vpa-up.sh

Check to see if the resources are being created. This may take up to 5 mintues

kubectl get pods -n kube-system

Confirm Metrics Visability

It is important to make sure the Metrics Server has visibility. If it does not then the Vertical Pod Autoscaler wont work

kubectl top nodes

kubectl top pods

If these commands return results then all is working well. If this yeilds results such as "metrics server not configured" or another result saying it doesnt have permissions, you will need to do 2 steps:

Fixing Incorrect Metrics/VPA Configuration

Tear Down VPA

Navigate back to the Verical Pod Autoscaler directory in the GitHub Repository

./hack/vpa-down.sh

This command deletes all of the k8 resources that were created in the vpa-up.sh step

Tear Down Metrics Server

Next you will need to tear down the metrics server resource

kubectl delete -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml

This will delete the Metrics Server resources. The last step is re-install the resources as described above.

Utilizing Prefect in K8

Prefect Deployments Running K8 Infrastructure

How it Runs

In the manifest file there is a value for workpool that must be applied. The k8 infrastructure is now dedicated to that workpool. Anytime a deployment is created, where its infrastructure block is a k8 job, and the workpool is set to the workpool in the manifest file, it will be run on the k8 cluster in EKS.

Work Queues

Work queues should be intentionally named for the project that is being deployed. The work queue does not need to be created prior to a deployment. If it doesnt exist yet it will be automatically created within the workpool upon deployment creation.
